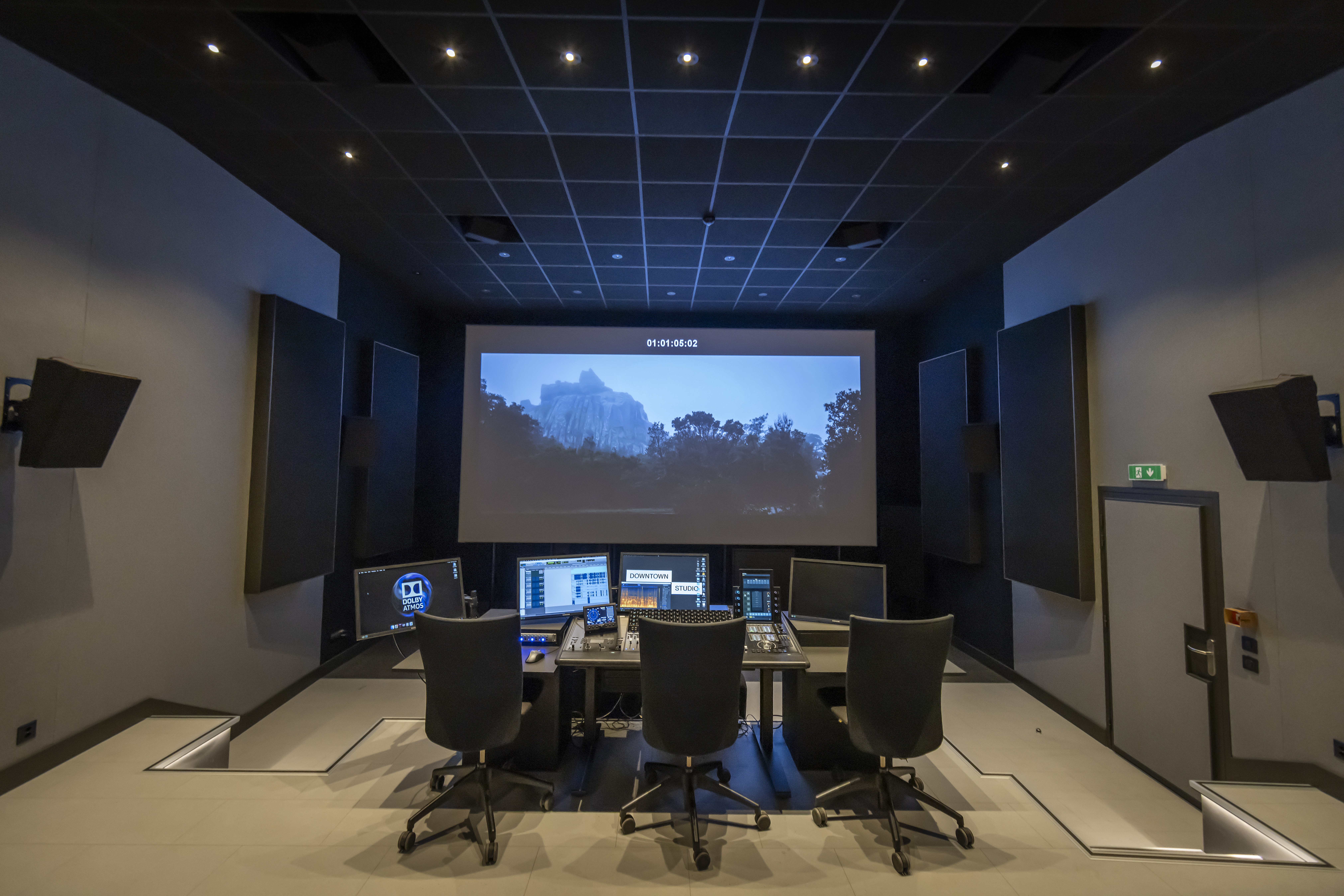

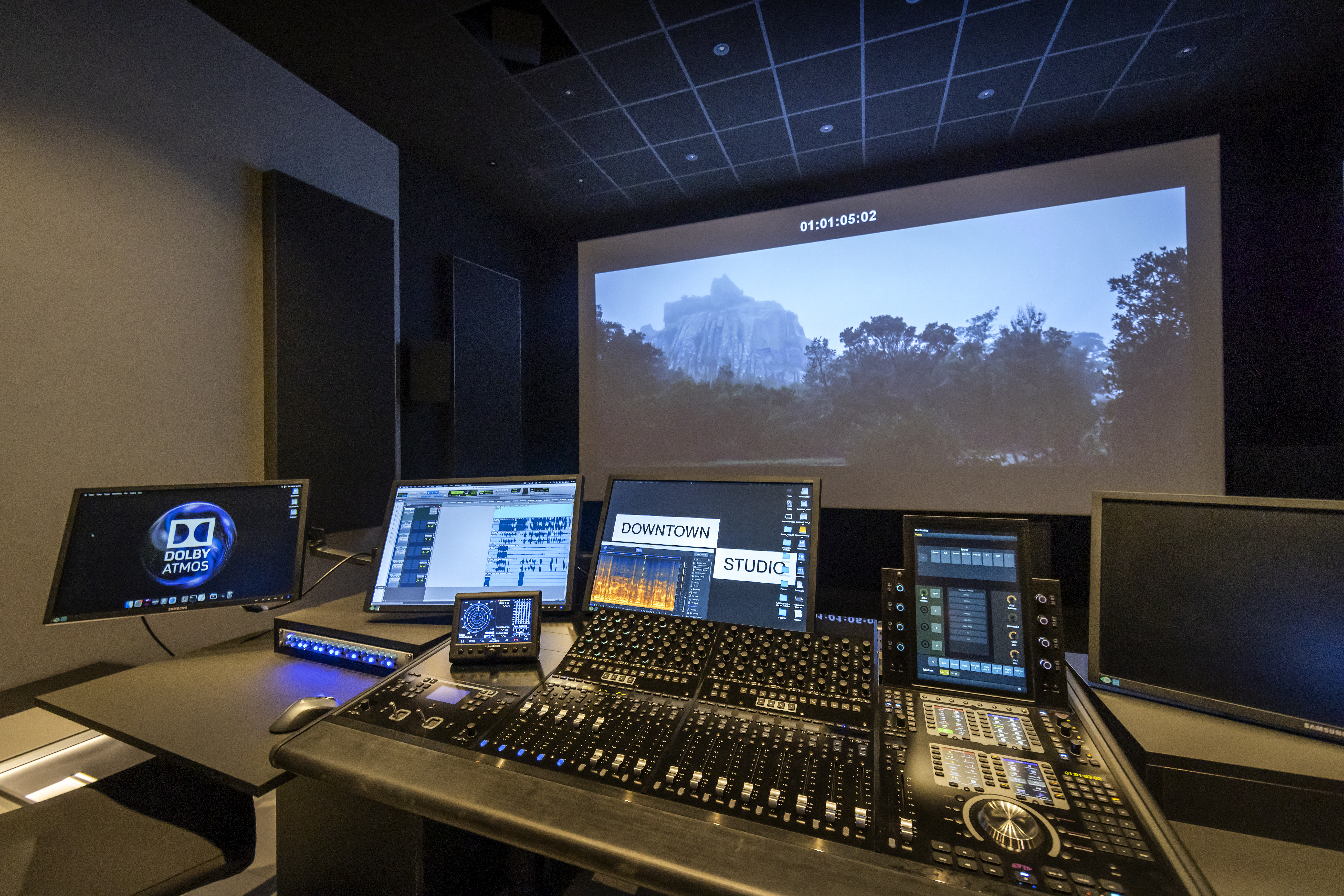

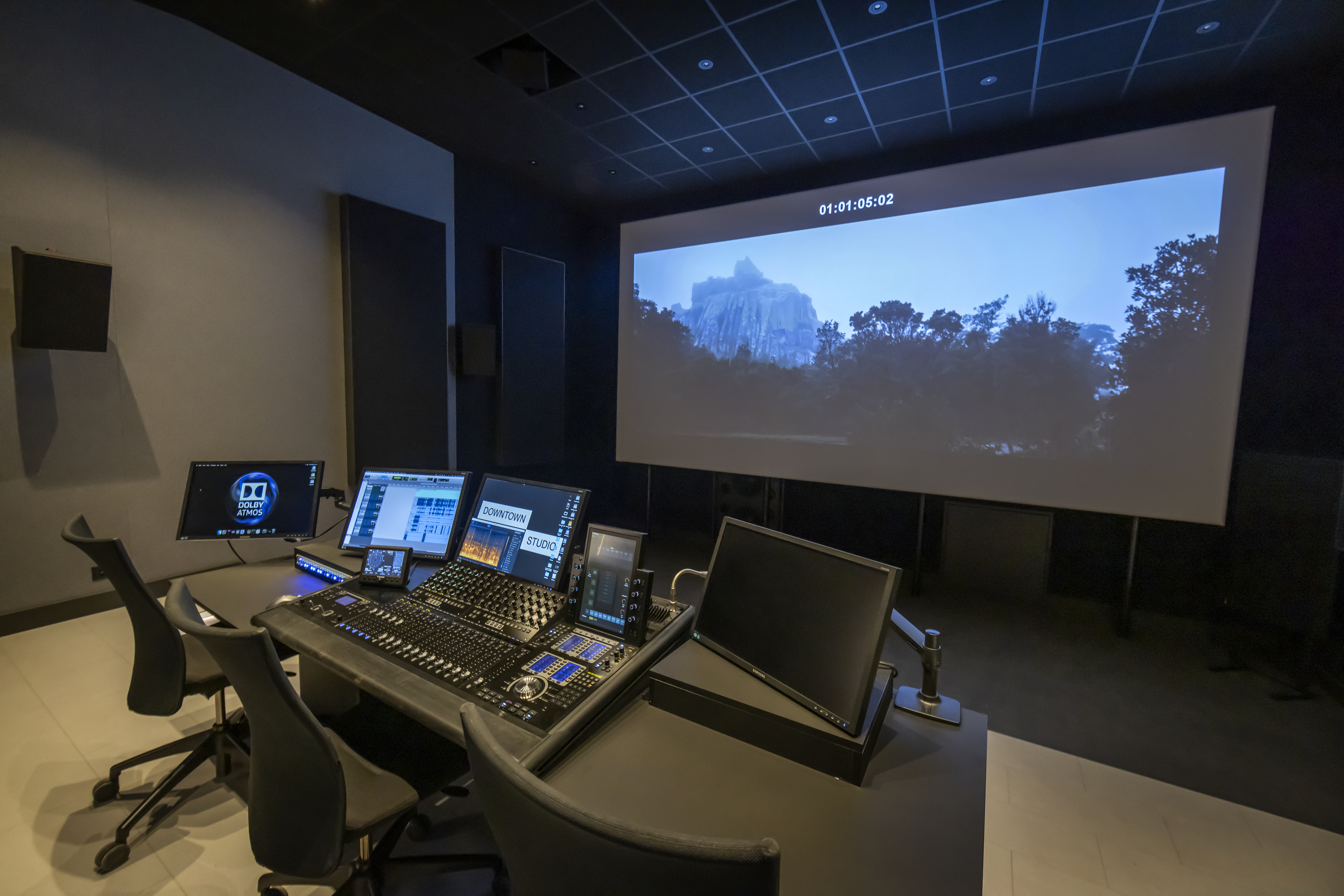

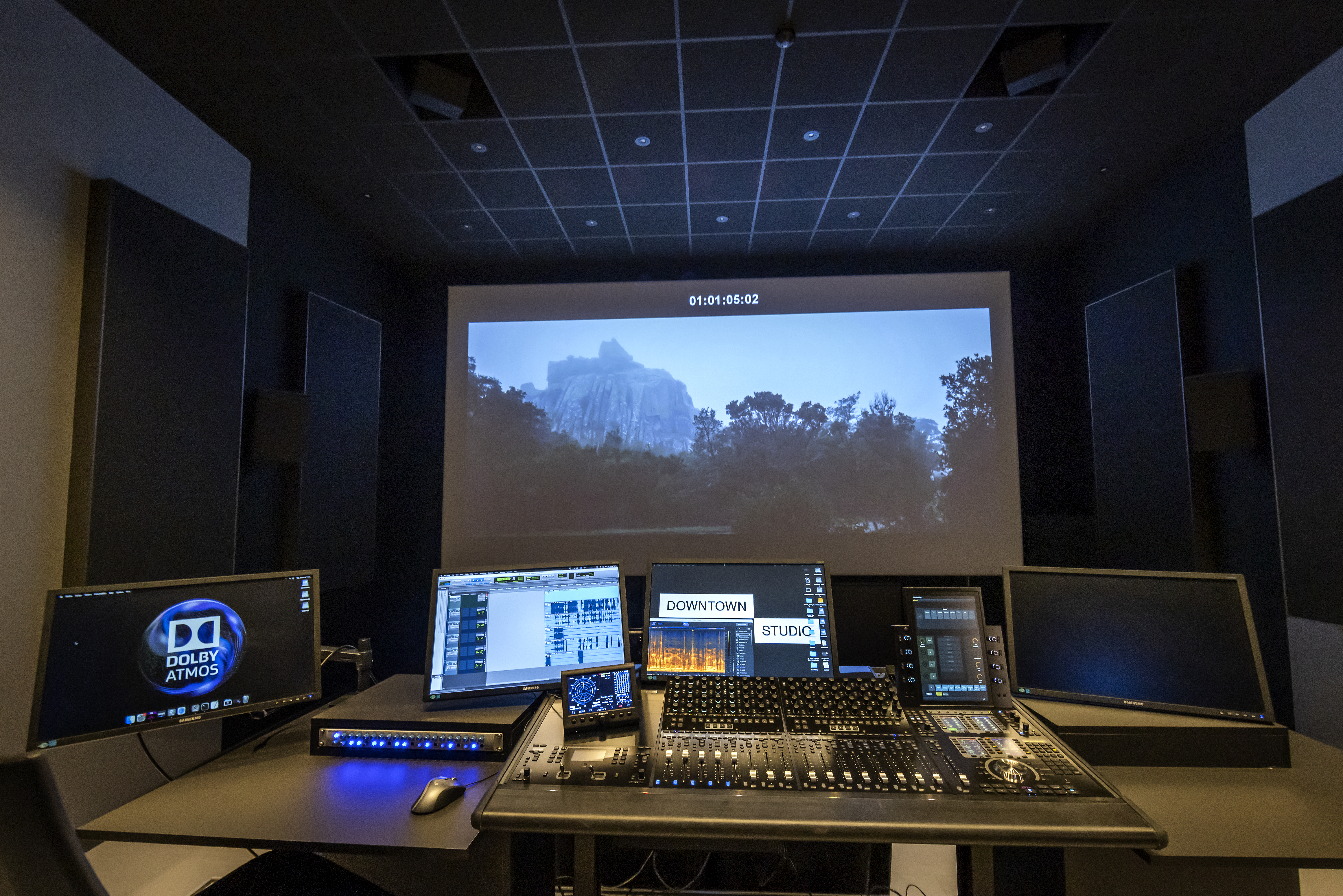

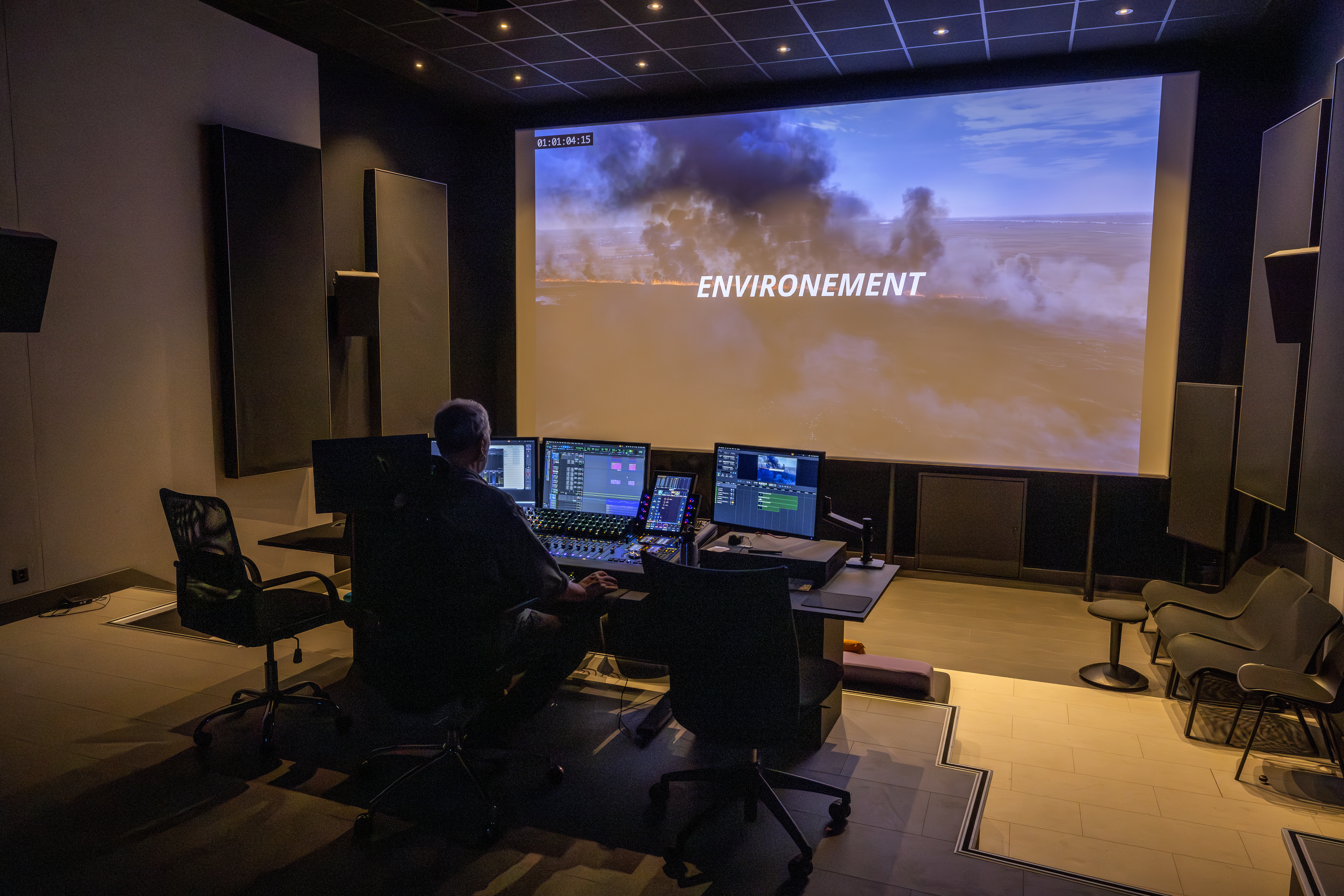

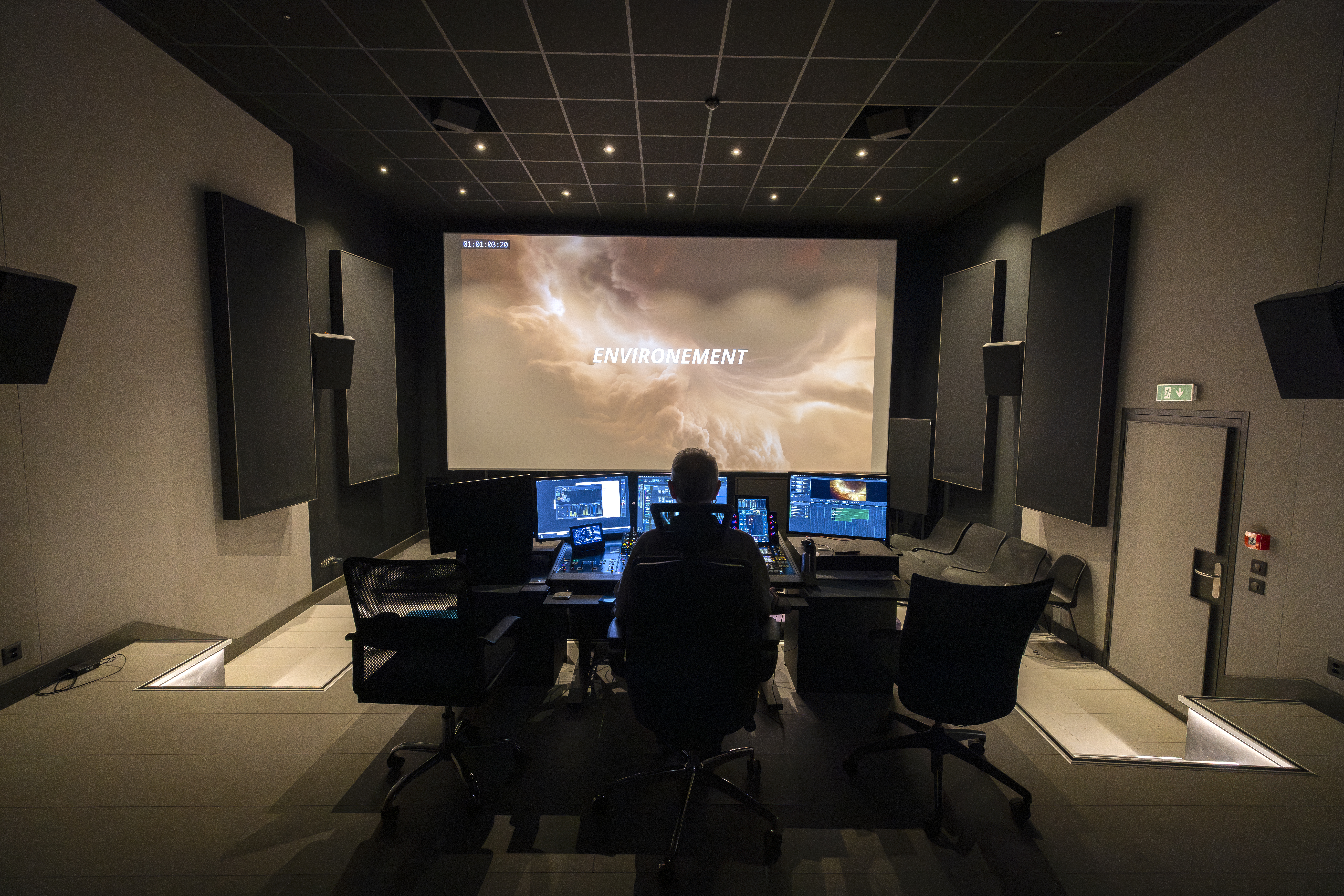

Welcome to our auditorium, a state-of-the-art mixing space offering 5.1, 7.1 and Atmos Dolby Digital capabilities.
Designed with exceptional acoustics by Jean Baptiste Prigl d'Ondel, this 400 m³ space is equipped with the Avid S4 console, a Mac Pro workstation and a high-quality DK Audio listening system.
Our auditorium is equipped with a Barco SP4k Retrofeet Laser projector, offering exceptional projection quality. With a 6-metre screen base, our space allows for precise mixing and colourimetry checks via DCP projections, ensuring the most professional and immersive visual experience possible.
This space also enables post-synchronisation sessions to be managed in optimum conditions.
Please find attached a more detailed list of our tools.
Auditorium technical sheet
Auditorium 5.1, 7.1 and Atmos Dolby digital
- 400m3 auditorium
- (acoustics designed by Jean Baptiste Prigl d'Ondel) https://jbpo-acoustique.com/
- 75 m2 floor space and 5 m ceiling height.
- Avid S4 16 fader console upgradeable to 24 fader. with Joystick option.
- ( installation 44-1)
- Mac pro (2019) 3.2 GHz Intel Xeon W 16 cores. 96 GB ram.
- Avid Pro Tools HDX2
- AVID MTRX
- Synchro with Avid Sync X
- RMU for Home Atmos via mac mini.
- XIlica SOLARO FR1 listening processor (listening system set-up by Frédéric Cattoni)
- Listening system :DK Audio E212-433 3 way dual amp in front.
- DK Audio A1214B for the surrounds
- SW DK Audio R218
- Ceiling speaker DK Audio AX5
- Rear Bass Management SW DK Audio R212
- QSC DCA 2422 amplifier.
- Screen width: 6m base.
- Central workstation with up to three screens for the mixer.
- A screen connected to another machine rebroadcasts the image of the protools session being mixed to the sound editor.
It can also be used to connect to soundminer to search for alternates or other sounds via headphones.
- Post-synchronisation recording via ADR master.
- Numerous plugins ( RX9 - Nugen - Audioease- Fabfilter - Penteo...)
- Vu meter TC Electronic Clarity for 5.1.
- Barco SP4k Retrofeet Laser projector
- Possibility of projecting DCPs via Dorémi for mixing and colourimetry checks.
